The complete guide
How to Choose Double Action Spring Hinges for Your Door
A door that opens only one way can be awkward in a narrow passage or at a counter opening. A swinging door offers another approach. It can move away from a person approaching from either side, while a spring helps return it after use.
These Auto-plaza double action spring hinges are designed for that type of movement. They have adjustable spring tension and are listed for doors within a stated thickness and load range. Before buying, though, it is worth checking more than the appearance. Door weight, mounting position and free space all affect whether the hardware is a sensible choice.
How double-action hinges work
A normal hinged door usually moves to one side of its closed position. Double-action hardware allows a suitable panel to swing to either side. That is the movement commonly associated with saloon doors and cafe-style counter doors.
The spring provides a return force when the panel is released. On this model, the tension is adjustable. That gives the installer a way to change the spring action, but it does not remove the need for correct alignment.
Think of tension adjustment as part of setting up a well-fitted door. It should not be used to overcome a panel rubbing against the floor or a frame that is out of line. Those issues need to be corrected first.
Where this style of hinge makes sense

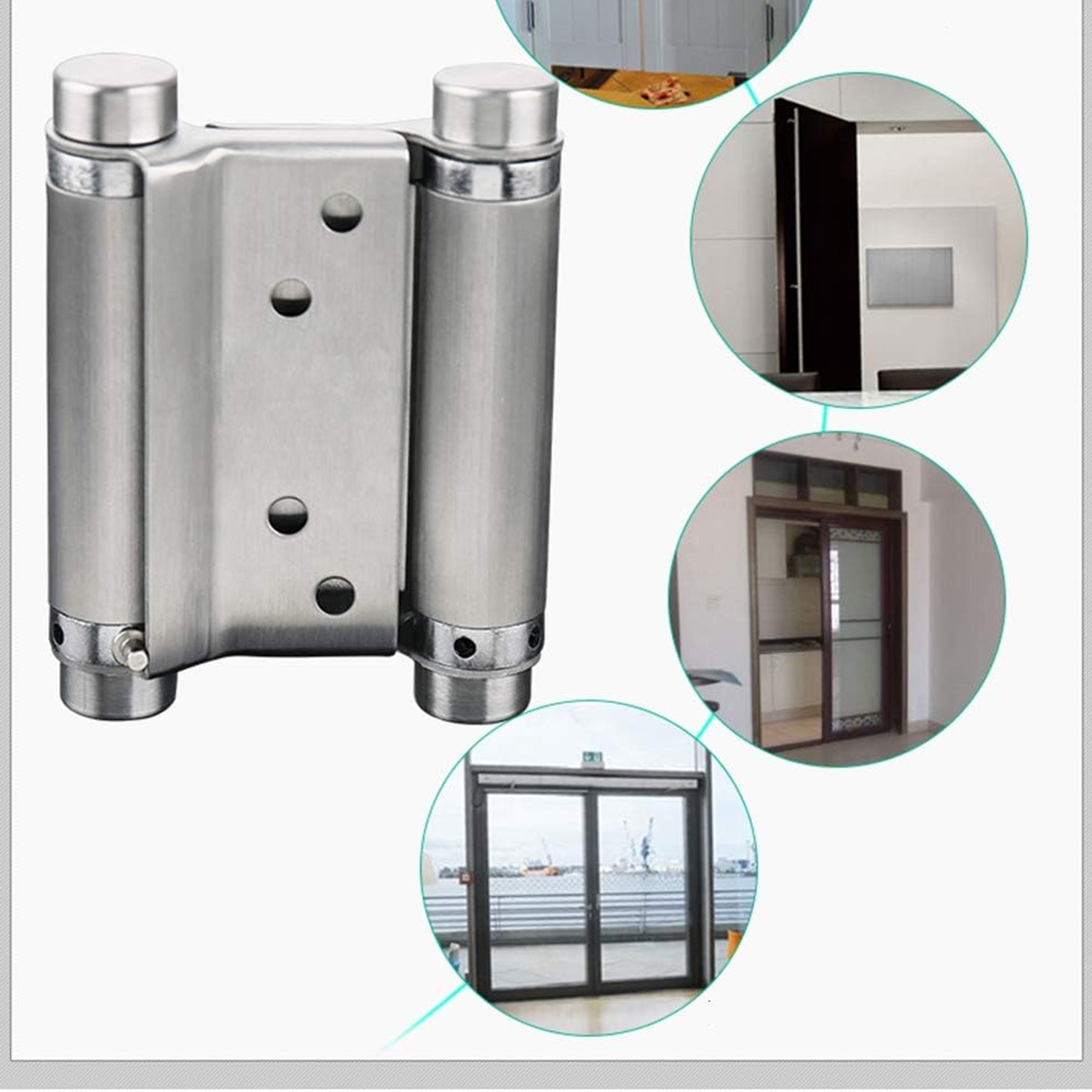

Saloon door hinges can suit an opening where a swinging panel is preferred over a door with a fixed opening direction. The supplier also mentions bar counter doors as an application. In either case, the panel needs enough room to move on both sides.
Walk through the intended opening before deciding. Picture where the panel will travel and whether it could strike nearby furniture, another door or someone standing at the counter. A clear opening is just as important as a matching hinge size.
Cafe swing door hardware also needs to suit the demands of the setting. This record gives no tested cycle count, commercial traffic rating or fire-door approval. Do not read a familiar application name as proof that the hinges meet a workplace or building requirement.
Start with the door thickness
The stated suitable door thickness is 0.78 to 1.2 inches. Measure the actual panel at the edge where the hinges will be fitted. Do not rely only on a nominal size from an old receipt or a general door description.
Pay attention to any trim or raised detail near the mounting area. A door may have a main panel that falls within the range, yet still lack a flat, suitable fixing surface at the edge.
If the measurement falls outside the listed range, choose different hardware or get advice from an installer. Altering a hinge or forcing it around an unsuitable panel can create fit and safety problems. A close-looking match is not enough for a moving part under spring force.
Read the load figure carefully
The supplier states a safe working load of 16.5 lb per hinge. This is useful information, but it is not a complete door-selection chart. The maker does not give limits for door width or a tested arrangement for every panel size.
Do not simply multiply the per-hinge figure by the number you intend to fit and treat the result as an approved door weight. How the load is shared depends on the installation. Door shape, hinge spacing and fixing strength also deserve attention.
For a heavy or unusually wide panel, ask an installer to check the setup before ordering. The right lightweight swing door hinges are those that match the whole job, not just one number on the product page.
Check dimensions and fixing positions

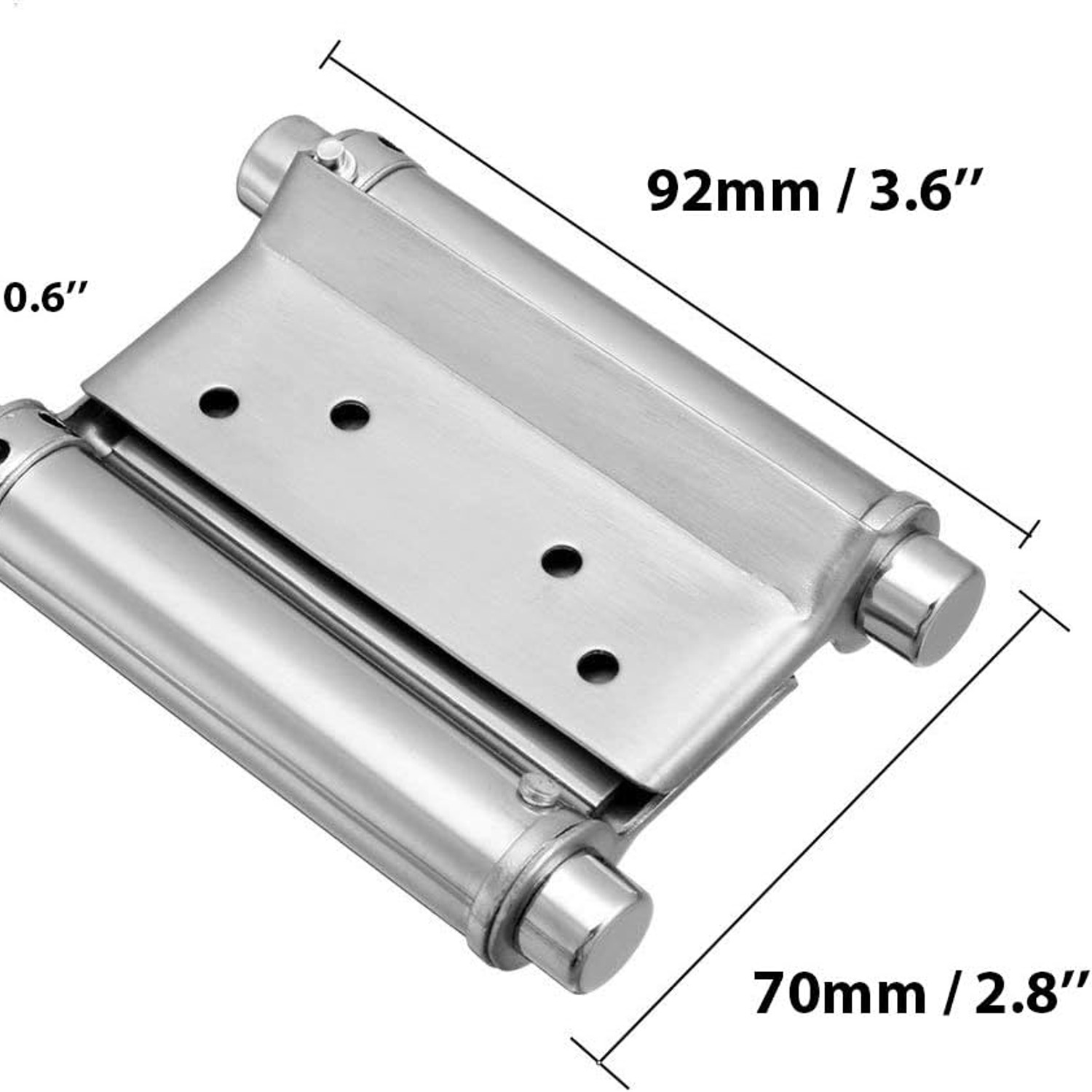

The listed hinge length and width are 9.2 × 7 cm. The supplier also gives a material thickness of 1.5 mm and a hole count of four. These details help with an initial comparison against your available mounting space.
They do not replace a fitting diagram. Hole spacing, full installed clearances and the exact fixing arrangement are not listed by the maker. If those measurements are essential to your project, confirm them before purchase.
This matters especially when buying replacement spring hinges. Existing screw holes may not match, even when two hinges look similar in a photograph. Check whether the door and frame can accept the new mounting arrangement without weakening the fixing area.

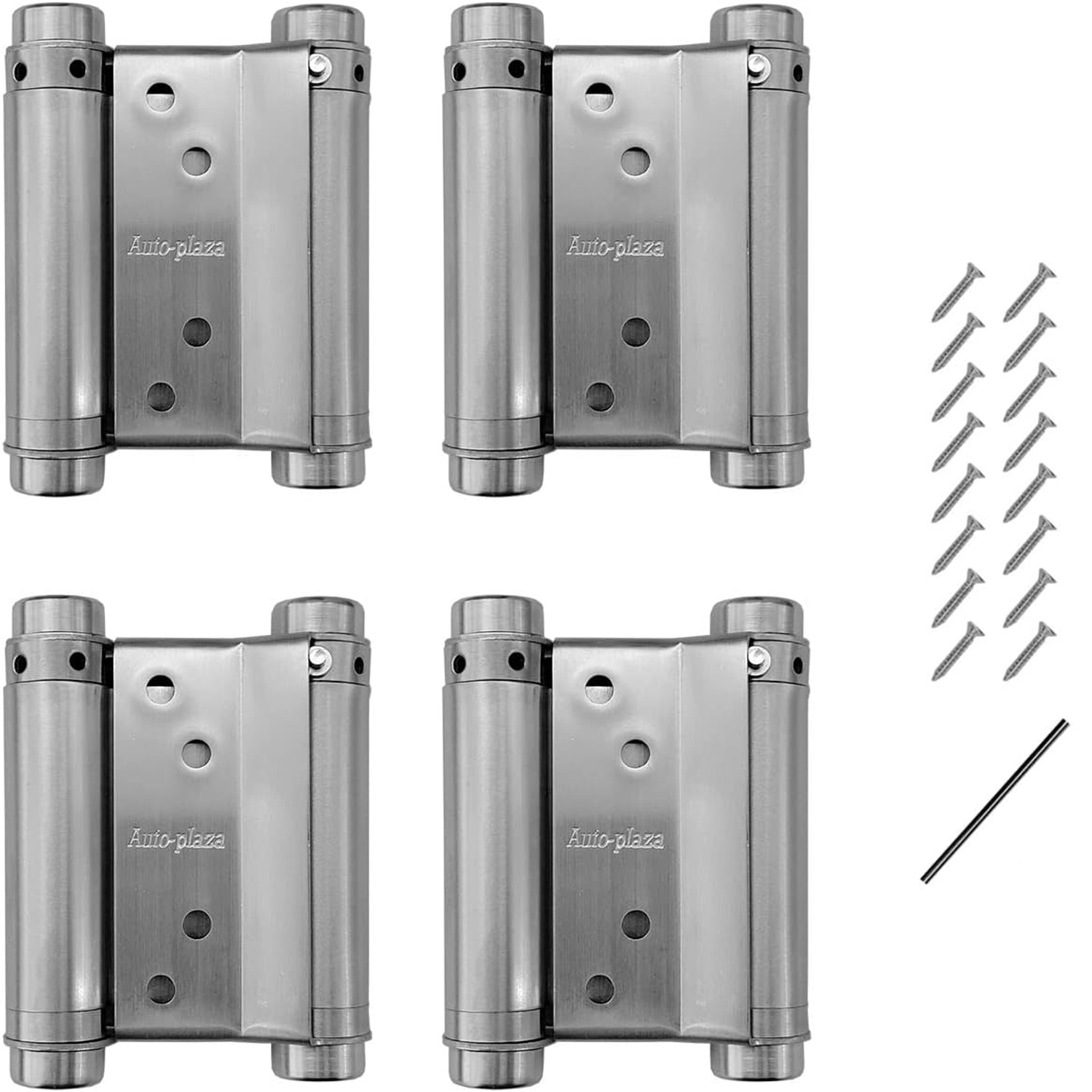

Confirm the pack quantity before planning
There is a conflict in the supplier information. The descriptive text refers to four hinges, while the structured product details show a unit count of two. The model number should not be used to settle that question.
Confirm the actual supplied quantity before placing your order. This is especially important for paired doors, where a missing hinge could stop the whole project.
It is also worth checking whether mounting screws and any adjustment tools are included. Neither is confirmed in the maker's listing. Knowing the contents in advance lets you plan suitable fixings instead of starting work and finding a part missing.
What the material details tell you

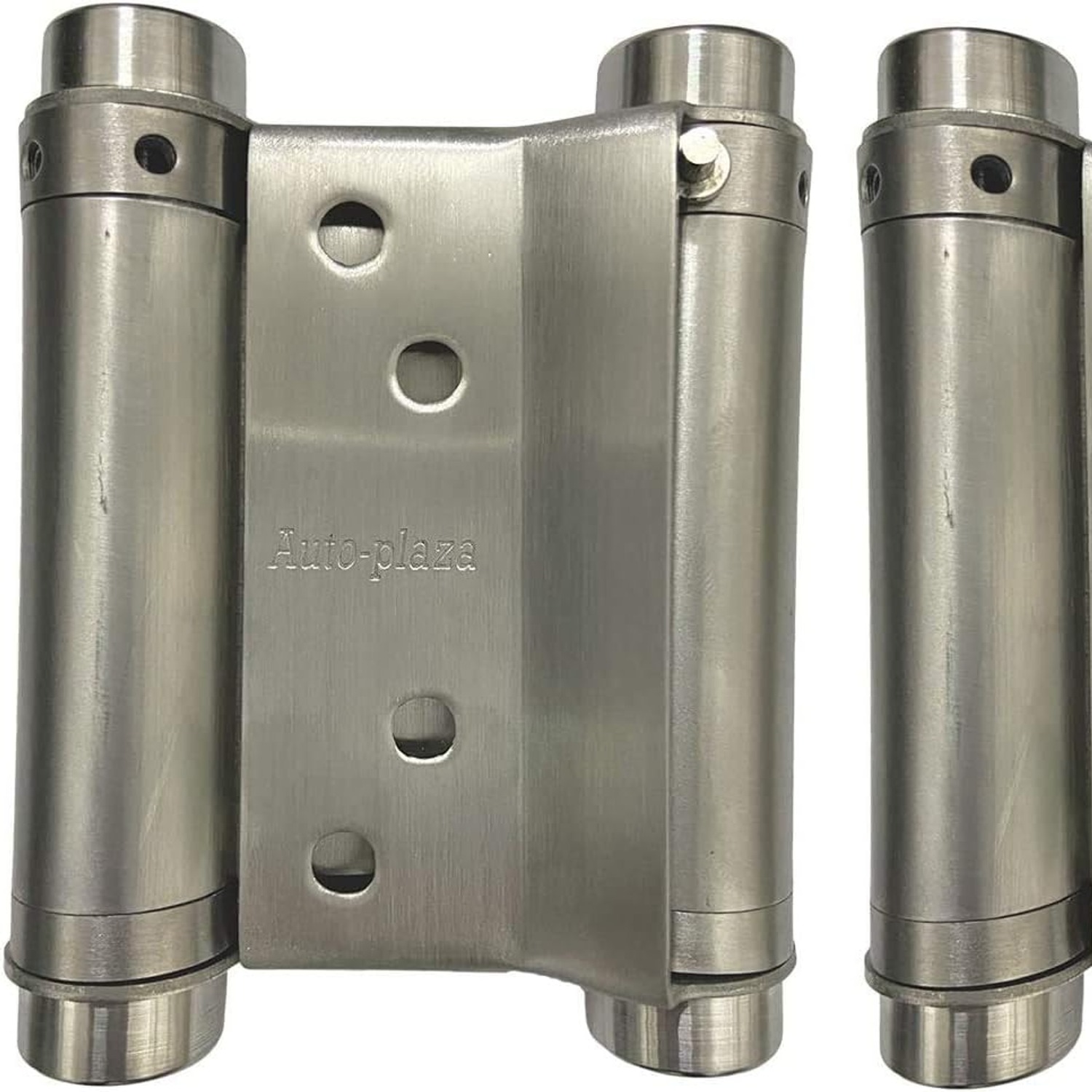

The supplier specifications describe stainless steel construction, a stainless steel finish and a silver colour. Silver door hinges can be a practical visual match for other metal hardware, although an exact finish match cannot be judged from the name alone.
The stainless steel grade is not given. There is also no stated outdoor exposure rating or corrosion test result. For that reason, do not assume the hinges will suit a damp outdoor gate or a coastal location simply because stainless steel appears in the specification.
For an exposed installation, ask for clear suitability information. If none is available, look for hardware with a rating that matches the environment. Material names are helpful, but they do not answer every question about long-term use.

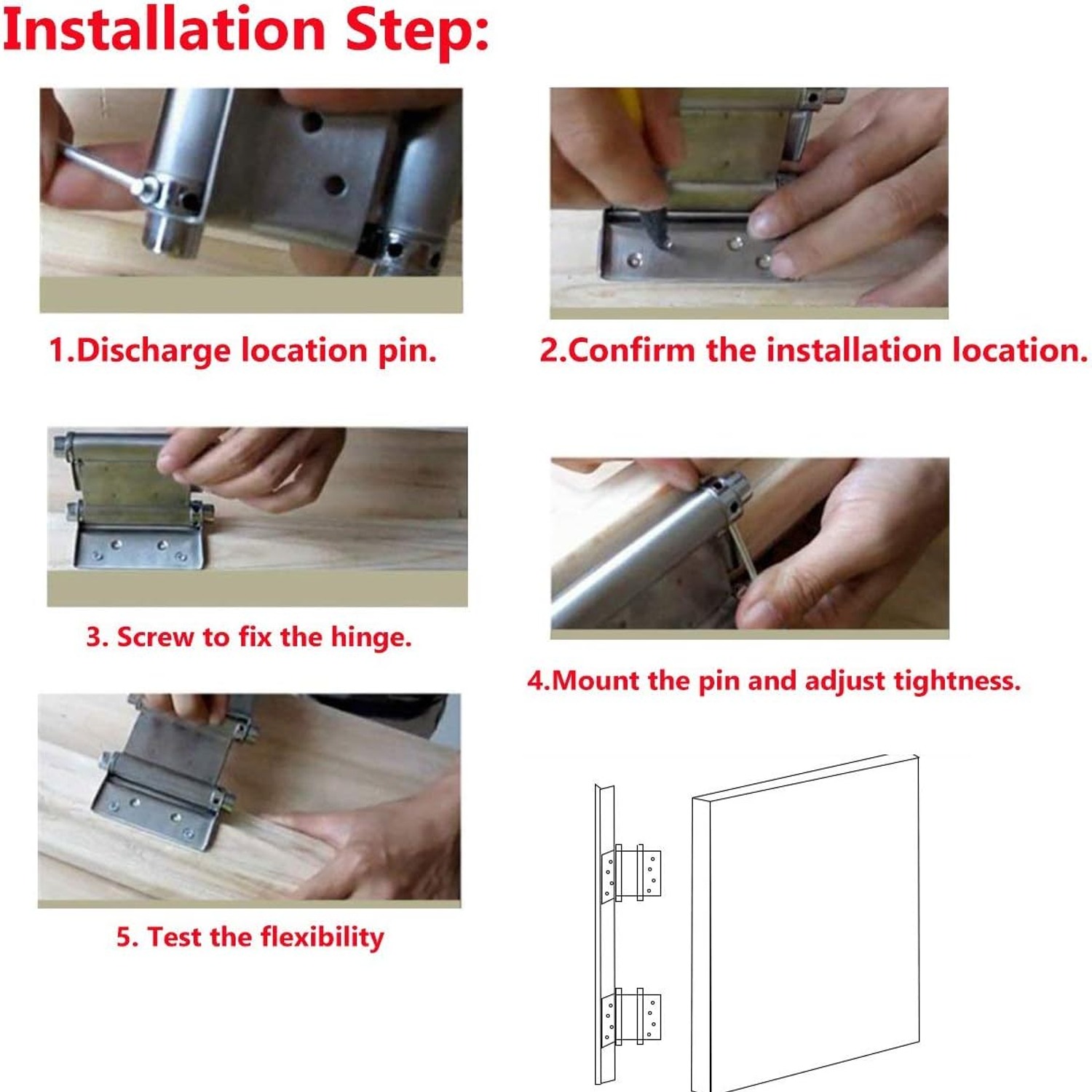

Plan the installation before drilling
Start with the instructions supplied with the hinges. Check the panel position, mounting surfaces and swing clearance before making permanent holes. Support the door safely while working rather than allowing its weight to hang from partly fitted hardware.
Double swinging door hardware needs room to move on either side of its resting position. Check the full path, not just the first few inches of travel. Nearby handles, skirting and counter edges can become contact points.
If you are not confident about selecting fixings or setting spring tension, use a qualified installer. This is particularly useful where the mounting surface is weak, damaged or hard to assess. A careful fitting plan is more valuable than rushing to get the door hanging.
Adjust the spring with care
The adjustable tension is one of the main reasons to consider this style of hinge. Follow the supplied method and keep fingers clear of the mechanism while making changes. Do not guess at a tool or adjustment sequence from another hinge model.
Test the door slowly after each permitted change. Look for free movement, secure mounting and a predictable return. Keep other people clear while checking how the panel behaves.
The maker does not list a separate hydraulic speed control or a hold-open feature. Adjustable tension hinges should not be treated as a substitute for a door closer with those specific functions. If either feature matters, choose hardware that explicitly includes it.
Keep care simple and regular
Wipe accessible surfaces with a soft cloth and dry them after cleaning. Avoid abrasive products that could mark the finish. Follow any supplied instructions for lubrication, since this record does not name a lubricant or service interval.
Check fixings and alignment from time to time. If the panel starts rubbing, sagging or moving differently, stop and find the cause. Increasing spring tension is not a sound first response to a mechanical problem.
Pay particular attention after other work around the doorway. A changed floor covering or moved counter fitting can reduce clearance. Even when the hinges themselves have not changed, the surrounding space may affect the door's travel.
The short version
These double action spring hinges offer two-way movement, adjustable spring tension and listed stainless steel construction. They are worth considering for a suitable saloon-style or counter door when the measurements and mounting arrangement match.
Before ordering, check the 0.78 to 1.2 inch door thickness range, the stated 16.5 lb per-hinge load and the available swing space. Confirm the pack quantity, fixing details and delivery estimate as well. Those checks will tell you much more about fit than the product name alone.
